3.5 KVA Genset, Recoil Start, Oasis UL-3500i
About This Product
*Max AC. Output VA :3500
*Rated AC. Output VA :3000
Starting System : Recoil Start
Fuel Consumption : Petrol 1.3 ltr/hr, Approx. LPG: 750gm
Run time : Approx. 5 Hrs.
Special Highlight
- 3.5 KVA Genset, Ultra-Light Weight, Digital Invertor Based Alternator, Electronic Governor keeps Low Engine RPM at part loads for low fuel consumption.
- Gives a Stable Regulated voltage 230 ± 1% and Stable Frequency 50 Hz ± 1 % & Pure Sine Wave, THD < 2%
To get more Power to Run Heavy Equipment, 2 or More HP-3500is Generator can be made to Run In Parallel, Two HP-3500is Generators in Parallel will produce 3 KVA + 3 KVA = 6KVA Power
Application
- Being Light Weight and Portable Genset, It is very suitable for serving electrical requirements in IT Sector / Remote areas / Field applications and running of sensitive Electronic Products Like Laptops / Computers / Digital Appliances, All types of Modern House Hold Electrical and Electronic Appliances Like Refrigerator Microwave, Induction Plate, Automatic Washing Machine, 5 Star Inverter AC, For charging Battery Inverters, for all types of Frequency & Voltage sensitive Equipment’s, Military & Powering Defense Equipment’s Etc.
This Premium product is Outcome of excellent Hard work of HPM's R&D Engineers. Himalayan Power is more than 25-year company offers Complete Power & Lighting Solutions through > 300 Products & Models. HPM is a 100% Make in India Company with after Sales & Services & spare parts at very economical prices.
Product Information
*Max AC. Output VA :3500
*Rated AC. Output VA :3000
Rated Current Amps :13
NFB Amps :13
AC. Voltage :230 Volts ± 1%, 50 Hz ± 1%, Single Phase, THD < 2%
Alternator
Alternator Type :Multi-Phase – Permanent Magnet (18 Pole) – Self Excitation
Engine
- Engine Model :HM170P
- Type : OHV25°Inclined, Single Cylinder,4 Strokes, S.I, Forced Air Cooling
- Maximum Power : 6.5 HP @ 3600
- Bore x Stroke : 70x58 mm
- Displacement : 223cc
- Starting System :Recoil Start & Self Start (Electronic Start)
- Fuel :Recoil Start
- Fuel Tank Capacity : Petrol – 6 Ltr.
- Fuel Consumption :Petrol 1.3 ltr/hr, Approx.LPG: 750gm
- Lube. Oil Capacity : 600 ml.
- Lubricating Oil Consumption : 2.5 gm./Hr.
- Continues Running (With One Filling) : 2.5 gm./Hr.
- Sound level (Db) (from 1 meter) : <86Db

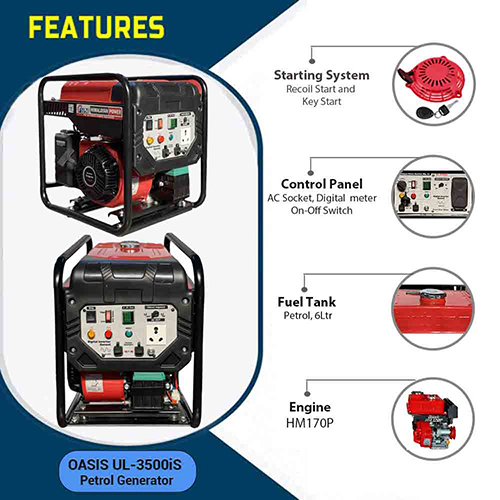

Panel & Other Standard Features
- Voltmeter : Digital Console (V, Hz, Amp)
- Oil Alert System : Yes
- LPG/ Gas Fuel Compatibility : Yes
- AMF Panel Auto & Remote Start Compatibility : NA
- Fuel Level Gauge : Yes
Size & Weight
- Approx. Weight (Kg) : 28.5 Kg
- Dimension LxWxH (mm) :375 x 440 x 465 mm
- Battery Specification: 14.8V - 10 Ah
