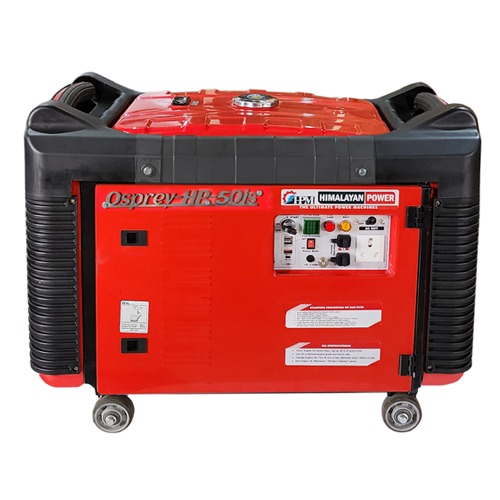

Model Osprey HP-50is, Recoil Start,5 KVA Petrol Inverter Generator
₹93093 ₹
Max AC. Output VA- 5500
Rated AC. Output VA- 4800
Fuel - Petrol + LPG (Optional)
Starting System - Recoil- Start +Self Start + Remote Start
Fuel Consumption - Approx. Petrol 1.5 ltr/hr, LPG: 850gm./hr.
Special Highlight :
- 5 KVA Genset, Ultra-Light Weight, Digital Invertor Based Alternator, Electronic Governor keeps Low Engine RPM at part loads for low fuel consumption.
- Gives a Stable Regulated voltage 230 ± 1% and Stable Frequency 50 Hz ± 1 % & Pure Sine Wave, THD < 2%
- To get more Power to Run Heavy Equipment, 2 or More HP 50is Generator can be made to Run In Parallel, Two HP50is Generators in Parallel will produce 5 KVA + 5 KVA = 10 KVA Power
Application :
- Being Light Weight and Portable Genset, It is very suitable for serving electrical requirements in remote areas / Field applications and running of sensitive Electronic Products Like Laptops / Computers / Digital Appliances, For charging Inverters, Air Conditioners & all Modern House Hold Appliances including all types of Frequency & Voltage sensitive Equipment’s, Military & Powering Defense Equipment’s Etc.
Product Information
- *Max AC. Output VA : 5500
- *Rated AC. Output VA : 4800
- Rated Current Amps : 20.8
- NFB Amps : 19
- AC. Voltage : 230 Volts ± 1%, 50 Hz ± 1%, Single Phase, THD < 2%
- Alternator Type : Multi-Phase – Permanent Magnet (18 Pole) – Self Excitation
- Invertor : 100 KHz, IGBT Based Digital Invertor – 5 Kw
Engine
- Model : HM170P4
- Type : OHV25°Inclined, Single Cylinder,4 Strokes, S.I, Forced Air Cooling
- Maximum Power : 7.5 HP @ 3600
- Bore x Stroke : 70x58 mm
- Displacement : 223 cc
- Starting System : Recoil Start +Self Start + Remote Start
- Governor : Electronic Governor (Load Sensitive – Variable Speed)Engine RPM 2500 (No Load) to 4200 RPM (at Full load)
- Fuel : Petrol + LPG (Optional)
- Fuel Tank Capacity : Petrol -20.5 Ltr.
- Fuel Consumption : Approx. Petrol 1.5 ltr/hr, LPG: 850gm./hr.
- Lube. Oil Capacity : 600 ml.
- Lubricating Oil Consumption : 2.5 gm./Hr.
- Sound level (Db) (from 1 meter) : <86Db (as per CBCP - II Norms)

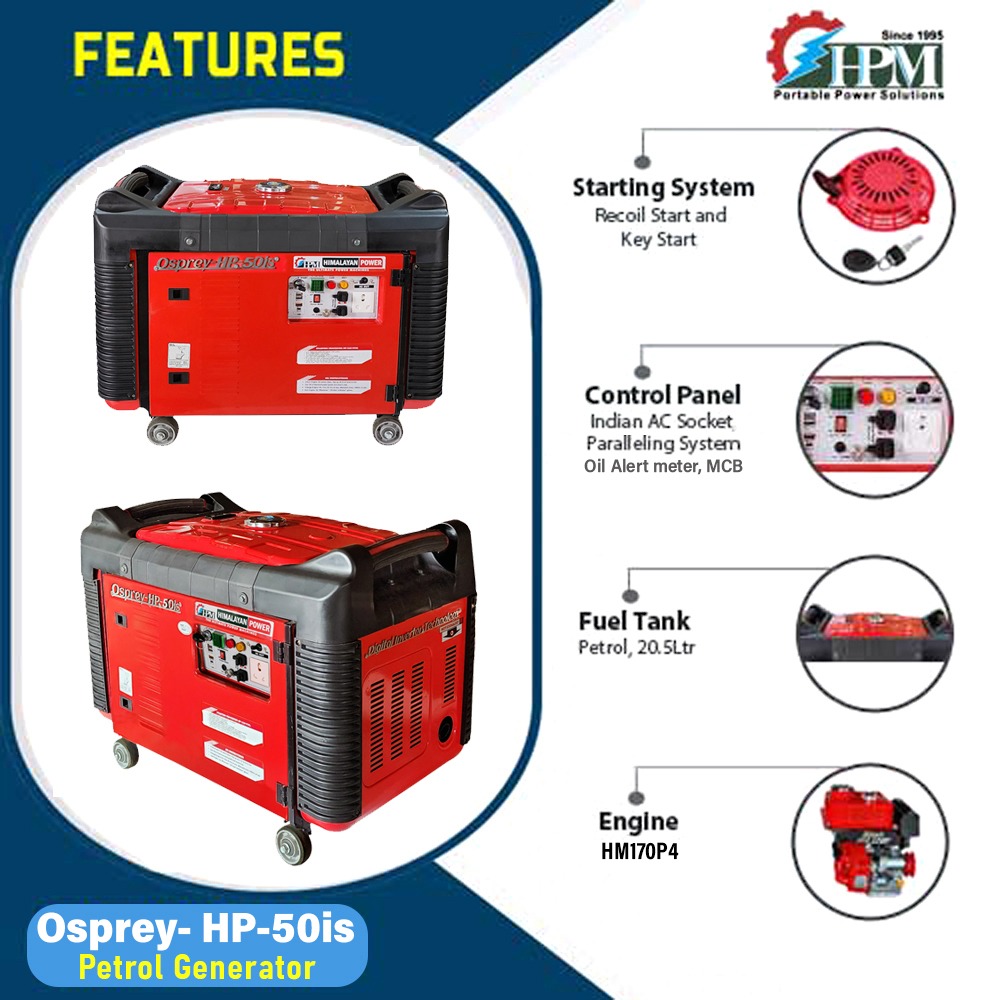

Panel & Other Standard Features
- Multifunction Digital Meter & Indicator : Digital Console (V, Hz, Amp)
- Oil Alert System : Yes
- Over Load Indicator : Yes
- 2 Genset Paralleling Capability : Yes, Red & Black Pair of Sockets Provided in Control Panel for Paralleling of 2 Generators
- LPG/ Gas Fuel Compatibility : Yes
- AMF Panel Auto & Remote Start Compatibility : Yes (Optional)
- Fuel Level Gauge : Yes
- AC On /Off, Overload Protection (NFB) : Yes
- Electronic Over Load Protection : Yes, Inbuilt with Inverter
- Costar Wheels : Yes
Packing
- Weight Appprox (Kg) : 71.5 KG
- Dimension LxWxH (mm) : 785 mm X 520 mm X 608 mm
- Battery Specification : 14.8 Volt 10 Ah Size
Specifications are for reference only, Because of continuous improvements and up-gradation by our R&D team. These specifications can change without any prior intimation.
