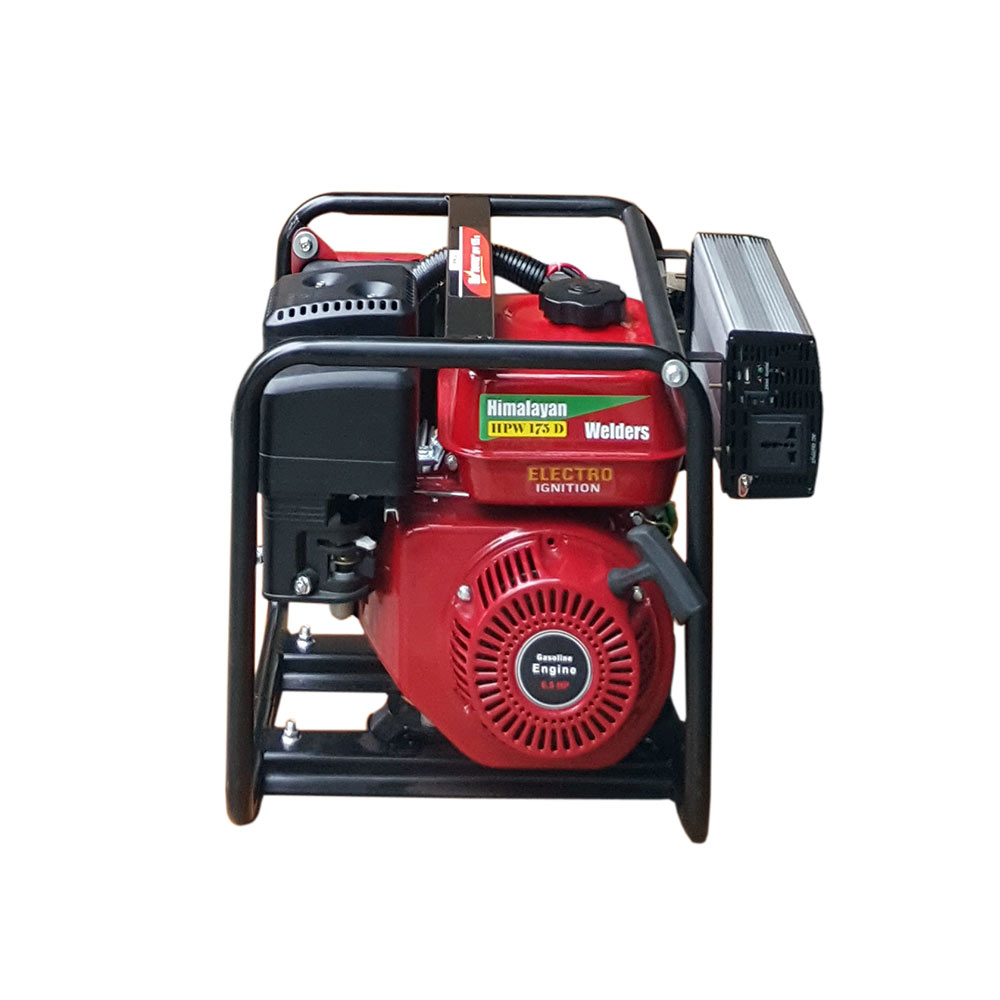

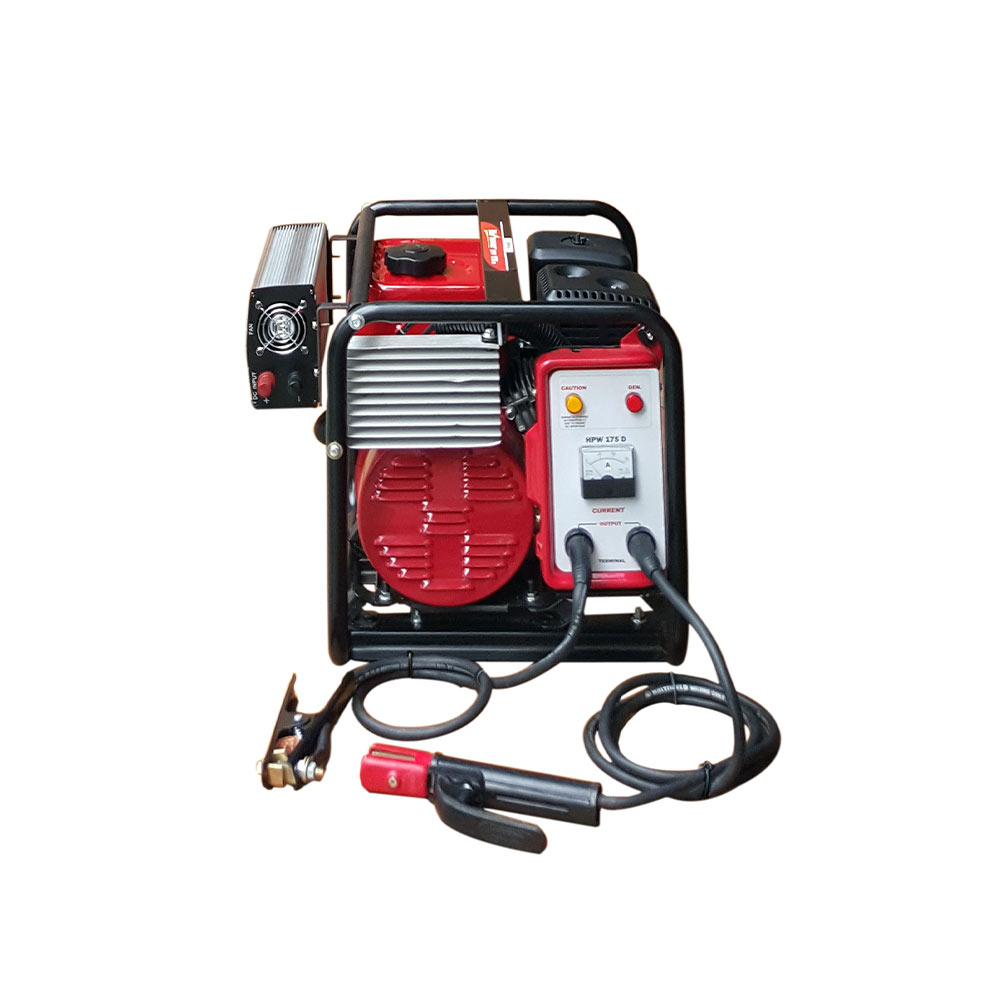

200 Amps Petrol Welding Generator, World’s Ultra Light& Low Cost Arc Welding Machine with Recoil Start Model HPW-175D-AC
- DC Welding Output: 75 to 175 Amps
- Electrode Dia.: 2.5mm to 4mm
- *AC. Output VA: Inverter 1 KVA
- Starting System : Recoil Start
- Fuel Consumption: Petrol 1 Ltr./Hr. Approx
- Run time: 3.5 hr. Approx
Special Highlight:
- World’s Ultra Light& Low Cost Arc Welding Machine Suitable for General Purpose Structural Welding, Light and medium, up to 4mm Electrode
This Premium product is Outcome of excellent Hard work of HPM's R&D Engineers. Himalayan Power is more than 25-year company offers Complete Power & Lighting Solutions through > 300 Products & Models. HPM is a 100% Make in India Company with after Sales & Services & spare parts at very economical prices.
Product Information
- Maximum Output (Duty Cycle 60%) : 175 Amps.
- Working Voltazge : 20v to 30 v
- Open Circuit Voltage : 50 Volt (Maximum)
- Current Regulation Amps : 75 Amps to 160 Amps
- Rectifying Mode : 3 phase - Bridge Rectifier (Full Wave)
- Maximum Electrode diameter : 2.5 mm to 4 mm
Engine
- Model : HM170 P
- Type : Single Cylinder Air-cooled; 4-stroke, OHV 25˚ Inclined
- Maximum Power (Duty Cycle 60%) : 6.5 HP
- Bore x Stroke : 70 x 54
- Displacement : 208 cc
- Starting System : Recoil Start
- Ignition System : TCI (Transistor Control Ignition
- Fuel : Standard Petrol
- Fuel Tank Capacity : 3.6 Ltr
- Fuel Consumption # Ltr./Hr. : 1Ltr/hr
- Continuous Operating Hour : 3.5 Hrs
- Lube. Oil Capacity : 600ml
- Lubricating Oil Consumption : 2.5 gm./Hr.

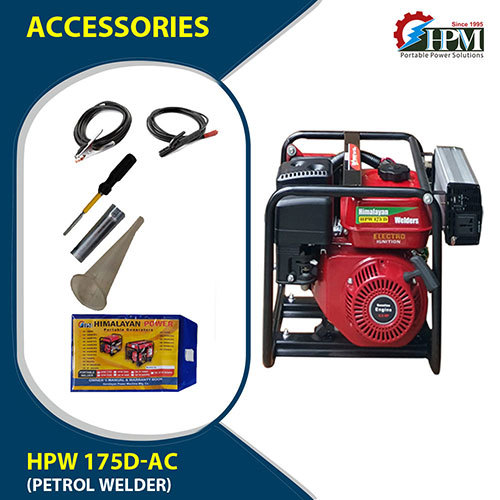

Standard Accessories
- Tool Kit : 1 Set
- Welder Holder : 1 Set
- Earthing Clamp with 3Mtr. Cable : 1 Set
- Oil Funnel : 1 No.
- Owner’s Manual : 1 No.

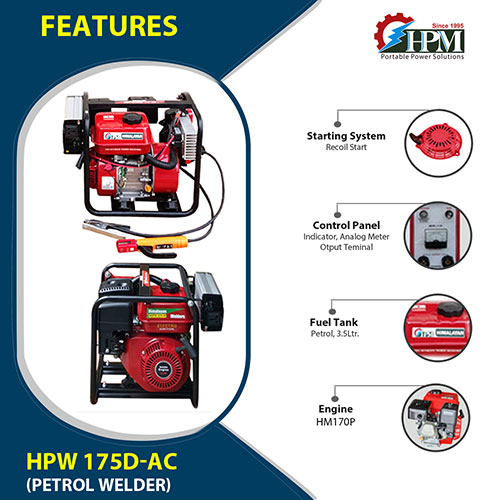

Panel & Other Standard Features
- Aux. AC Output 230 Volt - 50 Hz : Invertor 1 KVA
- Overload Protection : Yes
- Power Indicator : Yes
- Ampere Meter : Yes
- Engine Oil Protection : Yes (Electronic Oil Alert & Indicator)
Size & Weight
- Dry Weight (Kgs.) : 27KG
- Dimension LxWxH (mm) : 440 x 385 x 420mm
Specifications are for reference only, Because of continuous improvements and up-gradation by our R&D team. This specifications can change without any prior intimation
Warranty
|
Warranty Summary |
|
|
Service Type |
|
|
Covered in Warranty |
|
|
Not Covered in Warranty |
|
priyanshu sharma
“i recently bought this 200 Amps Petrol Welding Generator Perfect choice for my construction site. Sturdy, easy to move, and handles welding machines easily. Great performance overall!”
kartik notiyal
This welding generator is a powerhouse! I’ve been using it for 6 months in my fabrication shop — smooth arc, strong current, and very fuel-efficient.”
Pranay Malhotra
“this 200 Amps Petrol Welding Generator Excellent build quality.and it gives 175 Amps.maximum output . The generator starts easily and runs all day without overheating. Perfect for mobile welding work.”
Yashvardhan Mehra
choosing this generator for my shop.has been a good desicion for me .. it has a portable light weight size with recoil start good product hpm !!
samarth thakur
Best welding machine for on-site jobs. Compact design, easy to transport, and fuel consumption is surprisingly low.”
Nikhil rathore
“This 200 Amps Petrol Welding Generator totally worth the price. The generator gives a steady welding arc even under load. I’ve used it daily for 8 months — no issues at all.”
Ajay Kumar
“Superb performance! Handles thick and thin rods easily. Very low vibration and minimal noise.”
Vinay Reddy
I’ve been using this 200 Amps Petrol Welding Generator for my workshop. Easy to maintain and spare parts are easily available.”
Hari Krishnan
200amps ka yeh welding generator mene apne bussiness purpose k liye order kiya hai bihar me .. bhot achi tarah se himalyan power company ne ise deliver kiya hai or bhot acha kam kar rha hai... dhanyawaad hpm!!
Arjun Prasad
This generator runs flawlessly even after 8-10 hours of continuous welding. Great product for industrial use.”
Praveen Nair
“Impressive quality and reliable current stability. My welds have improved since switching to this machine.”
Srikanth Iyer
Perfect for field and repair jobs. The voltage remains stable and it starts easily even in cold weather.”
Karthikeyan Pillai
Using this generator for heavy-duty fabrication. It’s solid, well-built, and runs silently compared to older models.
Mahesh Ranganathan
Fuel efficiency is excellent. The machine gives constant welding current even during load variation. Very happy!”
Deepak Shetty
Good welding generator for workshops. Works fine doesn't makes noise even after 8-10hours of running.”
