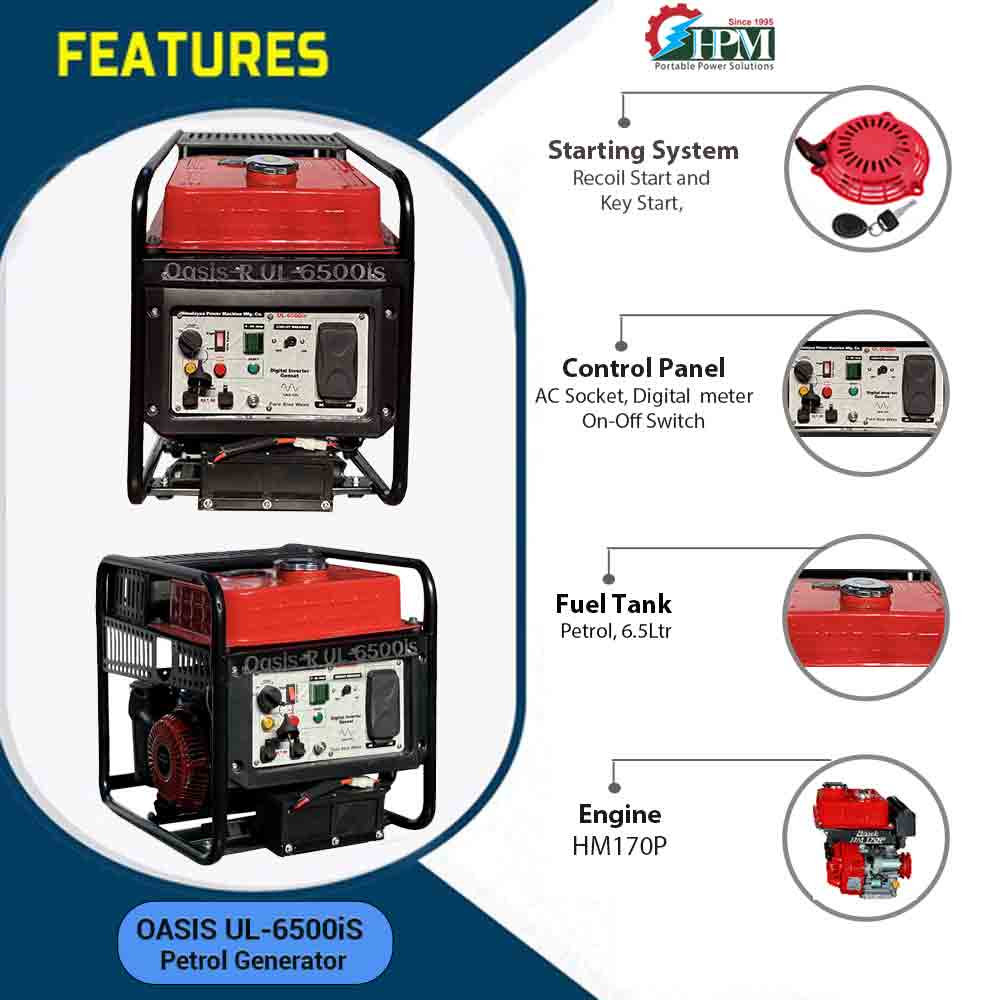

Recoil Start & Self Start ,5.5 KVA Genset ,Oasis UL-6500is
₹70225 ₹84270
About This Product
*Max AC. Output VA : 5500
*Rated AC. Output VA : 5000
Starting System : Recoil Start & Self Start (Electronic Start) + Remote Start
Fuel Consumption : Petrol 1.5 ltr/lir, Approx.LPG: 85Ogm
Run time : 4.5 Hrs. Approx.
Special Highlight
- 5.5 KVA Genset, Ultra-Light Weight, Digital Inverter Based Alternator, Electronic Governor keeps Low Engine RPM at part loadsat part loads for low fuel consumption.
- Gives a Stable Regulated voltage 230 + 1% and Stable Frequency 50 Hz + 1% & Pure Sine Wave, THD < 2%
To get more Power to Run Heavy Equipment, 2 or More UL-6500is Generator can be made to Run In Parallel, Two UL-6500is Generators in Parallel will produce 5 KVA + 5 KVA = 10KVA Power
Application
- Being Light Weight and Portable Genset, It is very suitable for serving electrical requirements in IT Sector / Remote areas /Field applications and running of sensitive Electronic Products Like Laptops / Computers /Digital Appliances, All types of Modern House Hold Electrical and Electronic Appliances Like Refrigerator Microwave, Induction Plate, Automatic Washing Machine, 1.5Ton, Inverter AC, For charging Battery Inverters, for all types of Frequency &Voltage sensitive Equipment’s, Military & Powering Defense Equipment’s Etc.
Product Information
*Max AC. Output VA : 5500
*Rated AC. Output VA : 5000
Rated Current Amps : 21.7
NFB Amps : 22
AC. Voltage : 230 Volts + 1%, 50 ÑZ + l'/o, Single Phase, THD < 2%
Alternator
Alternator Type : Multi-Phase — Permanent Magnet (18 Pole) — Self Excitation
Engine
- Engine Model : HM172P
- Type : 0HV25°lnclined, Single CyIinder,4 Strokes, S.I, Forced Air Cooling
- Maximum Power : 8 HP @ 3600
- Bore x Stroke : 72x58 mm
- Displacement : 240 cc
- Starting System : Recoil Start & Self Start (Electronic Start) + Remote Start
- Fuel : Petrol or LPG (Optional)
- Fuel Tank Capacity : Petrol - 6.5 Ltr.
- Fuel Consumption : Petrol 1.5 ltr/lir, Approx.LPG: 85Ogm
- Lube. Oil Capacity : 600 ml.
- Lubricating Oil Consumption : 2.5 gm./Hr.
- Continues Running (With One Filling) : 4.5 Hrs. Approx.
- Sound level (Db) (from 1 meter) : <86Db
Panel & Other Standard Features
- Voltmeter : Digital Control Panel (V, Hz, Amp)
- Oil Alert System : Yes
- LPG/ Gas Fuel Compatibility : Yes (Optional)
- AMF Panel Auto & Remote Start Compatibility : Yes (Optional)
- Fuel Level Gauge : Yes
Size & Weight
- Approx. Weight (Kg) : 38 Kg
- Dimension LxWxH (mm) : 532 x 415 x 515 mm
- Battery Specification : 12.8V - 15 Ah
